BIOS03 Fast Walk By Temperature Scanner
Overview
The BIOS03 is a powerful long-range IR thermal camera scanner with AI based facial detection technology that is designed to track and screen multiple people very quickly. The device uses infrared radiation technology to measure body temperature and generate alerts when the temperature is at an elevated level. The BIOS03 is based on Infiray's FS256Pro automatic double-light screening system that can conduct non-stop batch capture of infrared temperature and visual image in densely-populated places.
The BIOS03 adopts advanced AI face recognition technology and reliable infrared temperature measurement algorithm, and acquires the temperature through non-contact form at a distance of 4 meters (12-15 feet) at most. Once it finds over-temperature targets, it will alarm automatically and store the photo.

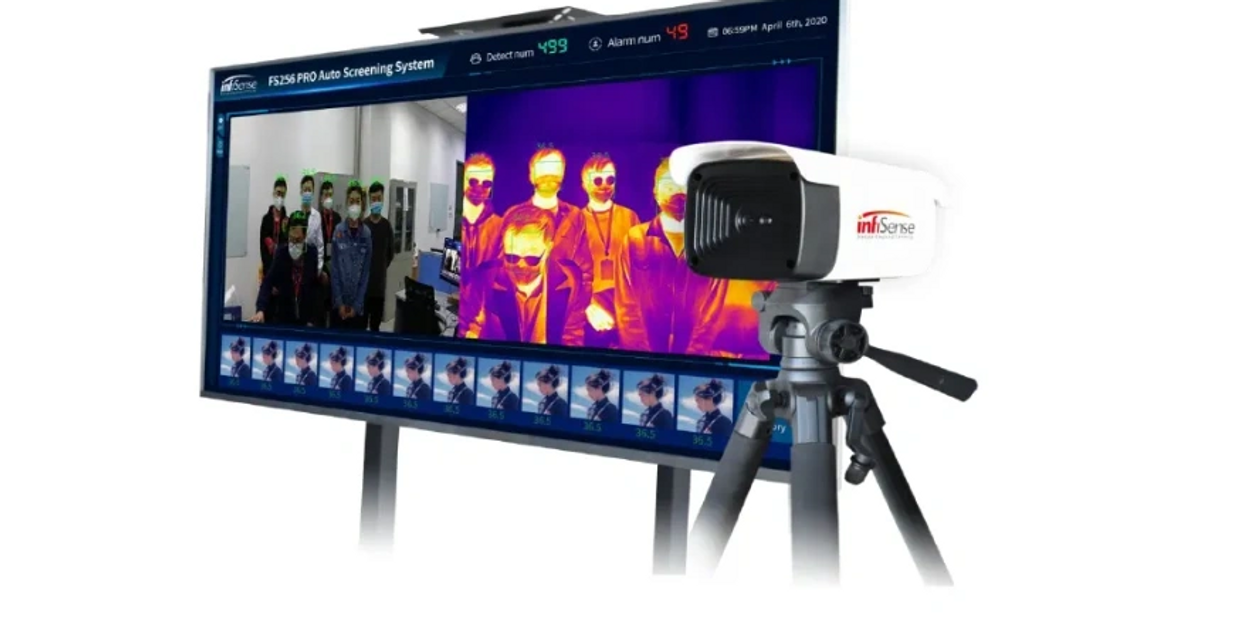

The unit is deployed on a tripod and connected to a large display monitor for viewing images in real-time. The data analysis software supplied with the product allows you to perform more sophisticated analysis on the images by selecting the candidates and getting more focused measurements.
While the device can scan upto 30 people simultaneously with an accuracy of +-0.5C over a distance of 15 feet, for best results it is recommended to be used to scan one person at a time as they are walking by in accordance with FDA guidelines for proper use of such equipment for temperature measurement.
The unit is designed for public places where large groups of users enter a facility such as schools, airports, hospitals, office entry ways, restaraunts, malls, grocery stores, schools and office buildings. With multiple people scanned simultanelously, you can scan upto 10 people a second.
Key Features
Long range facial recognition based body temperature scanning
The unit is caliberated to measure body/skin temperature at a distance of 10-15 feet. The IR thermal body temperature scanner measures multiple data points to get a more accurate temperature reading preventing false negatives.
A key feature is that the thermal camera uses AI to locate and detect their faces and take temperature measurements from the facial area that provides a more accurate temperature reading.
Fast screening & alerting
The unit is designed to track upto 30 multiple people and take simultaneous measurements. However in practise during deployment, it is recommended to screen 5-6 people at a time. The device detects and sounds an alarm within a second enabling fast and effficient screening for elevated temperature levels.
More accurate temperature measurements must be conducted as a follow up to truly ascertain that the person has fever by using medical FDA approved thermomenters.
Easy installation & operation
The device is easliy installed with plug-n-play capabilty. You can connect the device to a Monitor via HDMI cable and be operational quickly.
Specifications
Infrared part
Resolution 256*192
Pixel size 12μm
NTED ≤50mK
Frame rate 25hz
Focal length 3.2mm
Field angle 56°*42°
F# 1.1
Visible part
Resolution 1280*720
Field angle FOV 80°
Focal length 4.4mm
Accuracy of temperature measurement
Measuring range 30~45℃
Accuracy of measuring temperature ±0.5℃ or ±0.9F (Environment temperature 10℃~40℃)
Temperature measurement range ≤4m (10-15 feet)
Machine interface
Machine interface HDMI
Power
Power input AC100-240V 50/60Hz 0.5A
Power output DC5V 3A
Software function
High temperature alarm High-temperature alarm and image capture
File export Support history inquiry, screening and export to local disk
Live preview Live preview of visible and infrared image
Face recognition Intelligent face recognition and tracking
Parameter setting Pseudo-color selection, alarm, language and correction value setting
Environmental suitability
Working temperature 10~50℃ (Environment temperature 10~40℃ accurate temperature measurement)
Storage temperature -20~60℃
Packing specification
Machine head size 190mm*110mm*100mm
Packing size 394*194*153mm
Net weight 1420g (the actual shipment shall prevail)
Learn More
Applications
- Hospital & Building entry checks
- Airport passenger scanning
- Schools and educational institutions
- Retail stores, malls and factories
- Hotels & Resorts
Features
- Easy to deploy and operate
- IR Temperature sensor for alerting on high temperature
- Real-time mode for rapid screening and viewing images on monitor
- Detects faces in moving traffic and generates audio alarm whenever it detects a person with elevated temperature
- Range of upto 10-15 feet with accuracy of +-0.5C or 0.9F
- Support for Celsius or Fahrenheit
Demos of BIOS03
Multi-person screening video with alerts
Customers & Testimonials
Mission Community Hospital" The unit is working great. We are a hospital and the unit is at the main entrance. All employees love it and are grateful they are no longer touched on their forehead to read their temperature. The unit is accurate and fast at detecting temps. " - Operations Manager - Mission Community Hospital
Pricing
Pricing starts at $2499 for the thermal camera + tripod.
Educational, healthcare and government discounts apply.
Call us or email us ((877) 597-7673 ) for quotations and corporate purchases. We do accept POs on Net 30 or Net 60 terms.
Note:
This unit is not a medical FDA approved thermometer. Body temperature measurement from this device should not be solely or primarily relied upon to diagnose or exclude a diagnosis of a disease. It is to be be used for initial fast screening of people for elevated body temperatures.
Elevated body temperature as detected by this device must be confirmed with a secondary NCIT or FDA approved clinical grade contact thermometer.
Photo Gallery
Tripod installation with front facing monitor at a Fulton county government office facility in Atlanta, GA
